Home > KC12 (Alder Lake-P CPU)
| Type | Descriptions | |||||
| PROCESSOR |
Intel® Core™ Alder Lake-P i5-1240P ( 12 Core(4+8), Frequency 3.3GHz ~4.4GHz) i5-1250P ( 12 Core(4+8), Frequency 3.3GHz ~4.4GHz) i7-1260P ( 12 Core(4+8), Frequency 3.4GHz ~4.7GHz) i7-1270P ( 12 Core(4+8), Frequency 3.5GHz ~4.8GHz) |
|||||
| GPU |
Intel® Iris® Xe Graphics |
|||||
| MEMORY |
2x SO-DIMM DDR4-2133/2400/2666/3200 max support 64GB |
|||||
| VIDEO OUTPUT |
2* HDMI2.0 (max support 4096x2304@60Hz) 1* DP(max supprot 4K 4096x2304@60Hz) 1* type-C support display |
|||||
| AUDIO and MIC | Audio/MIC jack*1 + MIC*1 | |||||
| ETHERNET |
LAN: 2*2.5G , RJ45 LAN, WIFI: M.2 2230 PCIe slot Realtek 8821 |
|||||
| STORAGE INTERFACE |

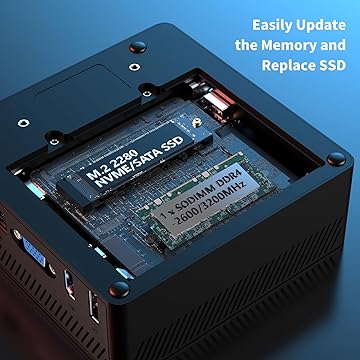

a. M.2 2280 SSD(support SATA3.0/NVME PCIE) b. 2.5" SATAIII SSD/HDD c. 1 x M.2 2280 SSD slot, support SATA SSD |
|||||
| FRONT PANEL |

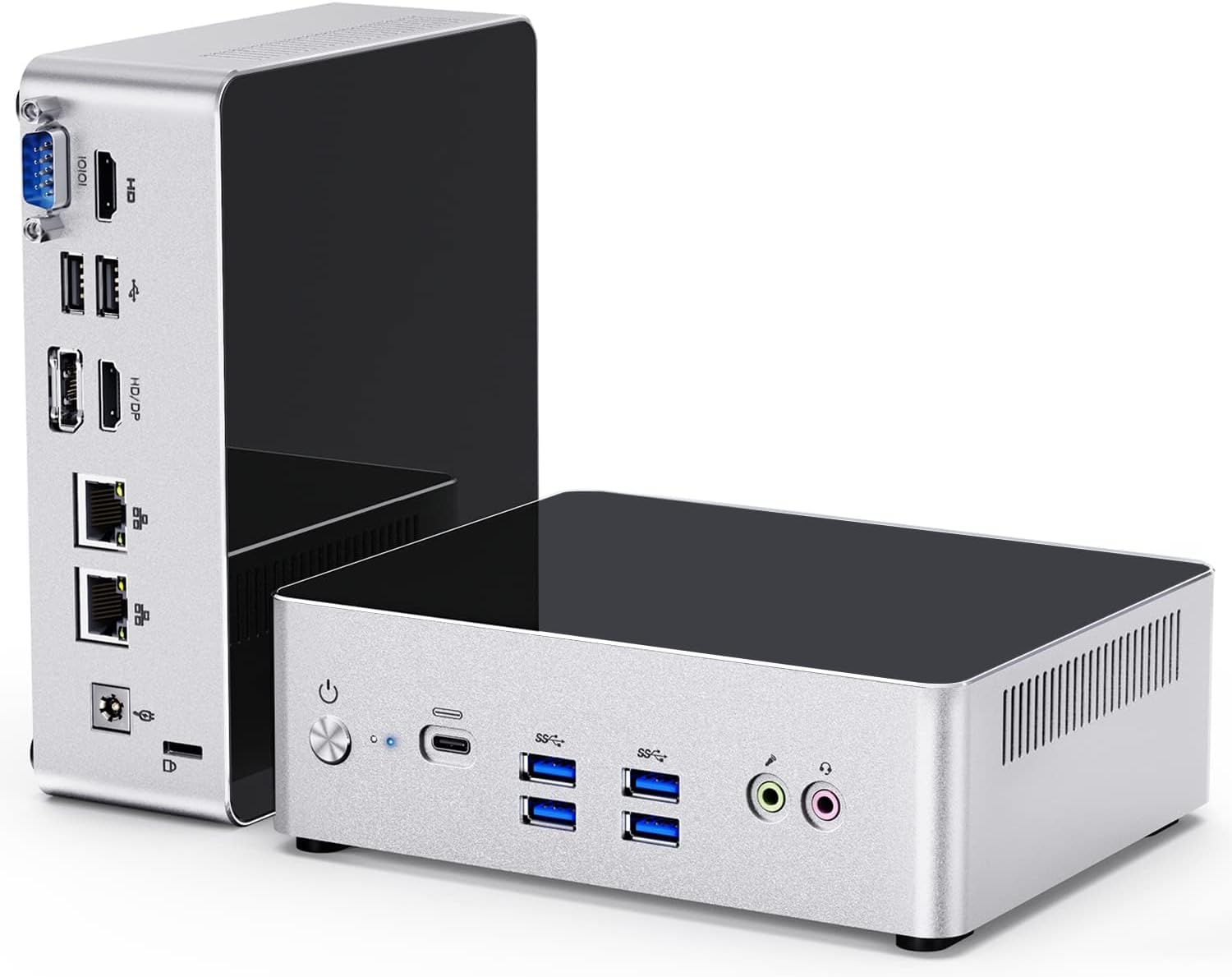

Power Button MIC /Audio port USB3.2 * 4 Type-C (support dispay) |
|||||
| BACK PANEL |

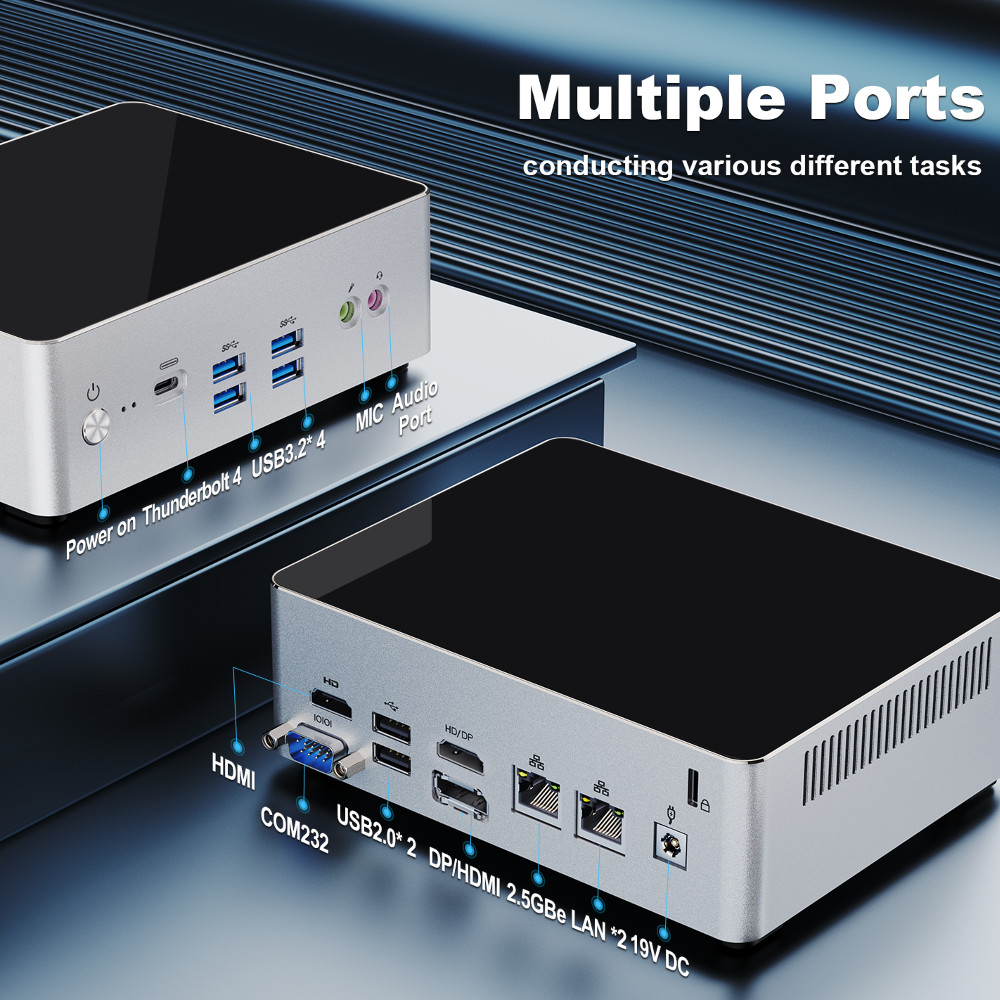

RJ45 LAN *2 HDMI 2.0 *2 DP1.4* 1 USB2.0 *2 DC IN (12-19V) COM 232*1 |
|||||
| POWER |
Input:100- 240V AC Output: 19V4.74A DC |
|||||
| ACCESSORIES |
AC Adapter,HDMI cable, VESA mount |
|||||
| VESA mount | Support(70*70/100*100mm) | |||||
| SIZE | Chassis:158*125*49MM | |||||
| CHASSIS MATERIAL | Plastic | |||||
| OS SUPPORT | WIN10/WIN11 | |||||
