Home > KC12F(Alder Lake CPU)
| Type | Descriptions | |||||

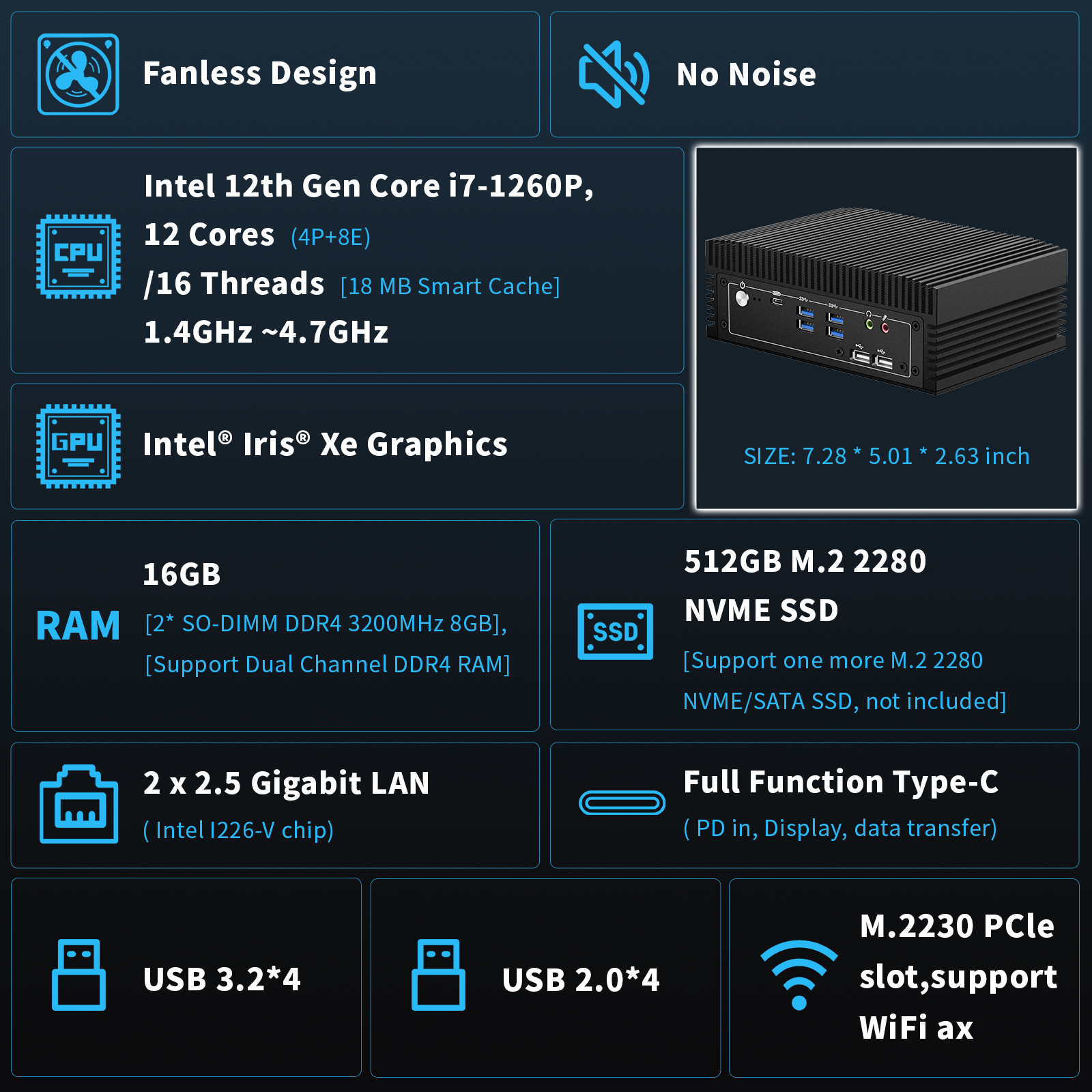

| PROCESSOR |
Intel® Core™ Alder Lake-P i5-1240P/ i7-1260P Intel® Core™ Alder Lake-U i3-1215U / i5-1235U / I7-1255U |
|||||
| GPU |
Intel® Iris® Xe Graphics Graphics max 1.4Ghz |
|||||
| MEMORY |
2x SO-DIMM DDR4-2666/3200MHz max support 64GB |
|||||
| VIDEO OUTPUT |
2 * HDMI2.0 (max support 4K@60Hz) 1* DP(max supprot 4K 4096x2304@60Hz) 1* Thunderbolt Type-C |
|||||
| AUDIO and MIC | Audio/MIC jack*1 | |||||
| ETHERNET |
LAN: 2 x 2.5Gbe LAN, RJ45(Intel I226-V chip) WIFI: M.2 2230 PCIe slot |
|||||
| STORAGE INTERFACE |
a. 1 x M.2 2280 SSD slot, support SATA/ NVME PCIe Gen4 SSD b. 1 x M.2 2280 SSD slot, support NVME SSD c. 1 x SATA III for 2.5"HDD/SSD |
|||||

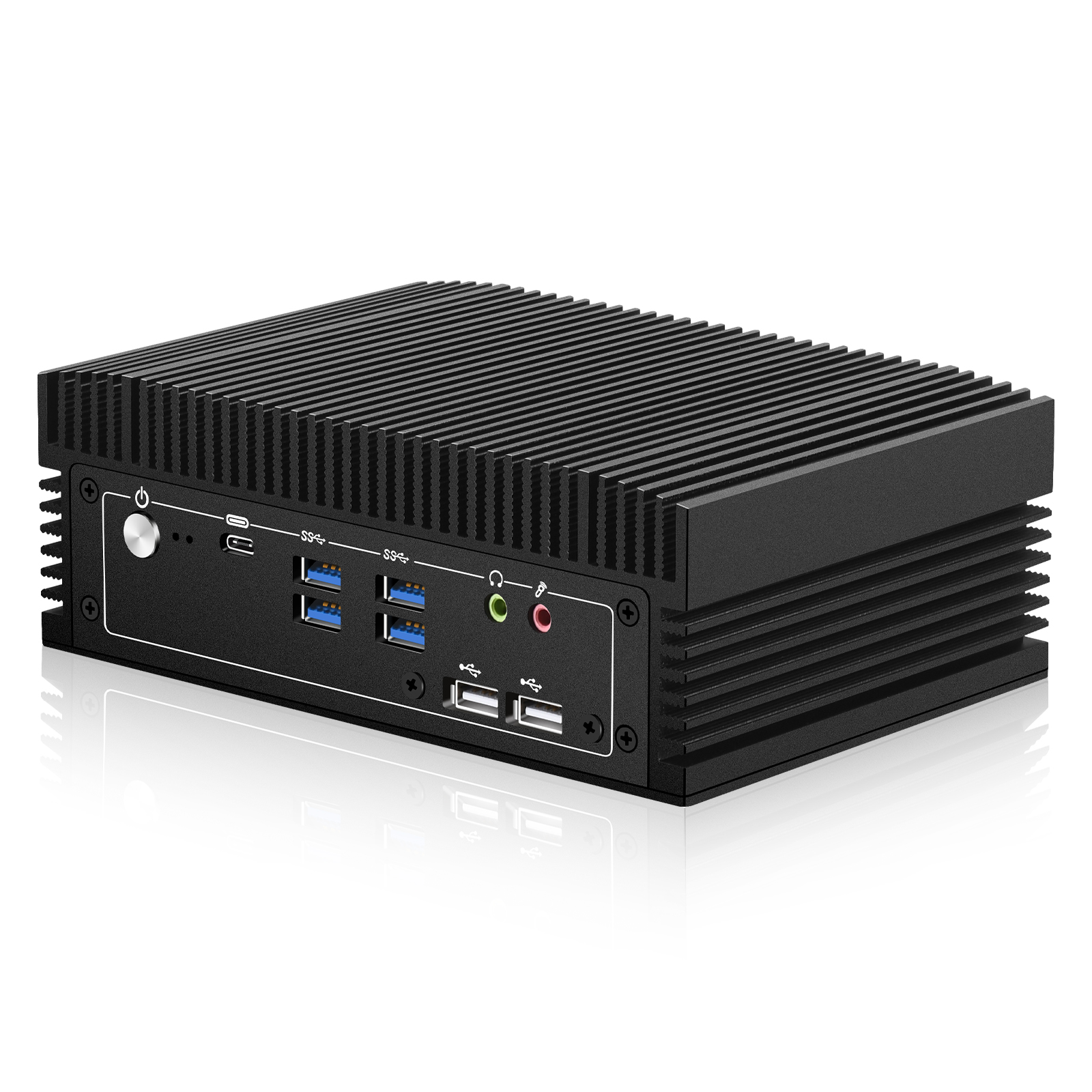

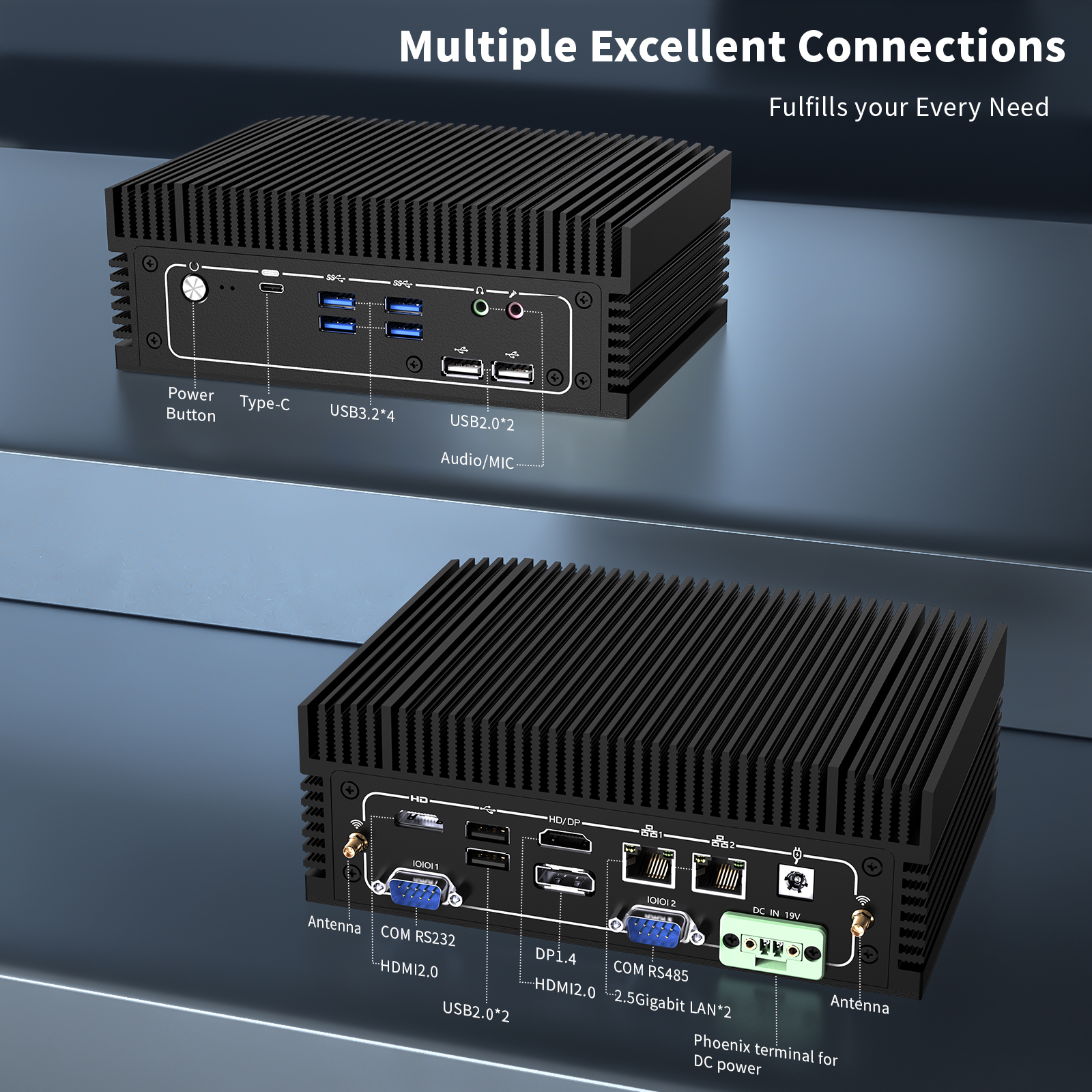

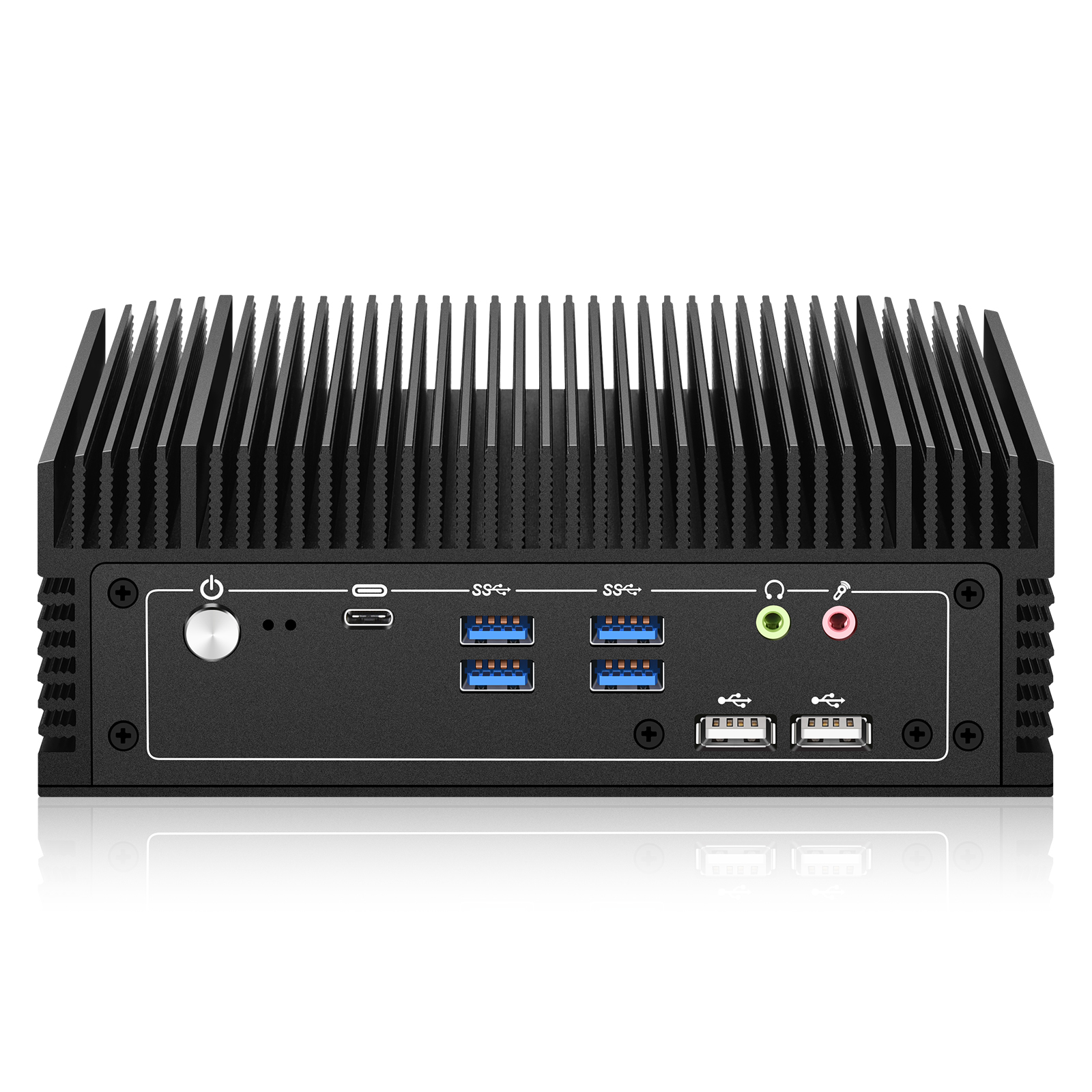

| FRONT PANEL |
Power Button MIC /Audio port USB3.0 * 4, USB2.0 * 2 Type-C (thunderbolt 4) *1 |
|||||

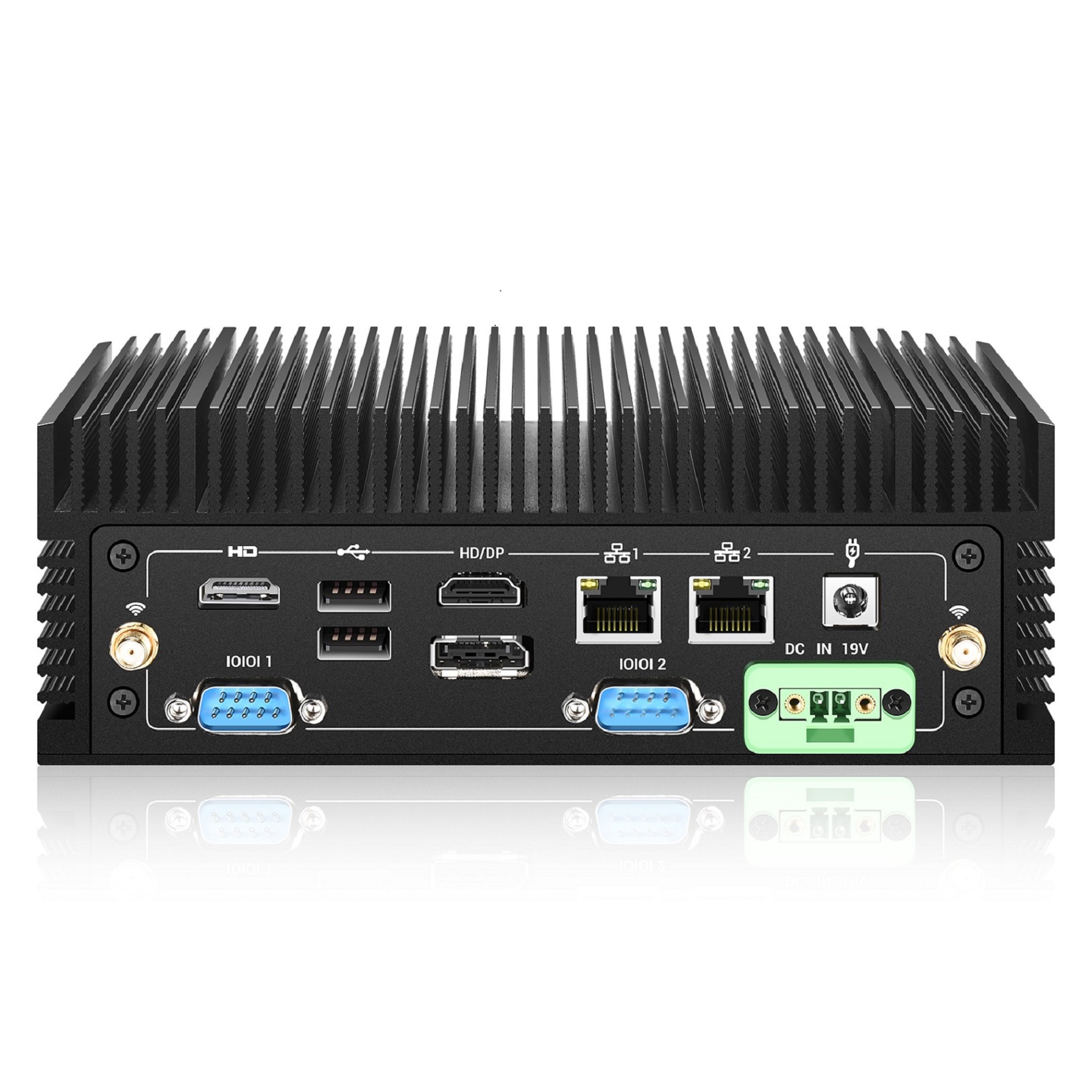

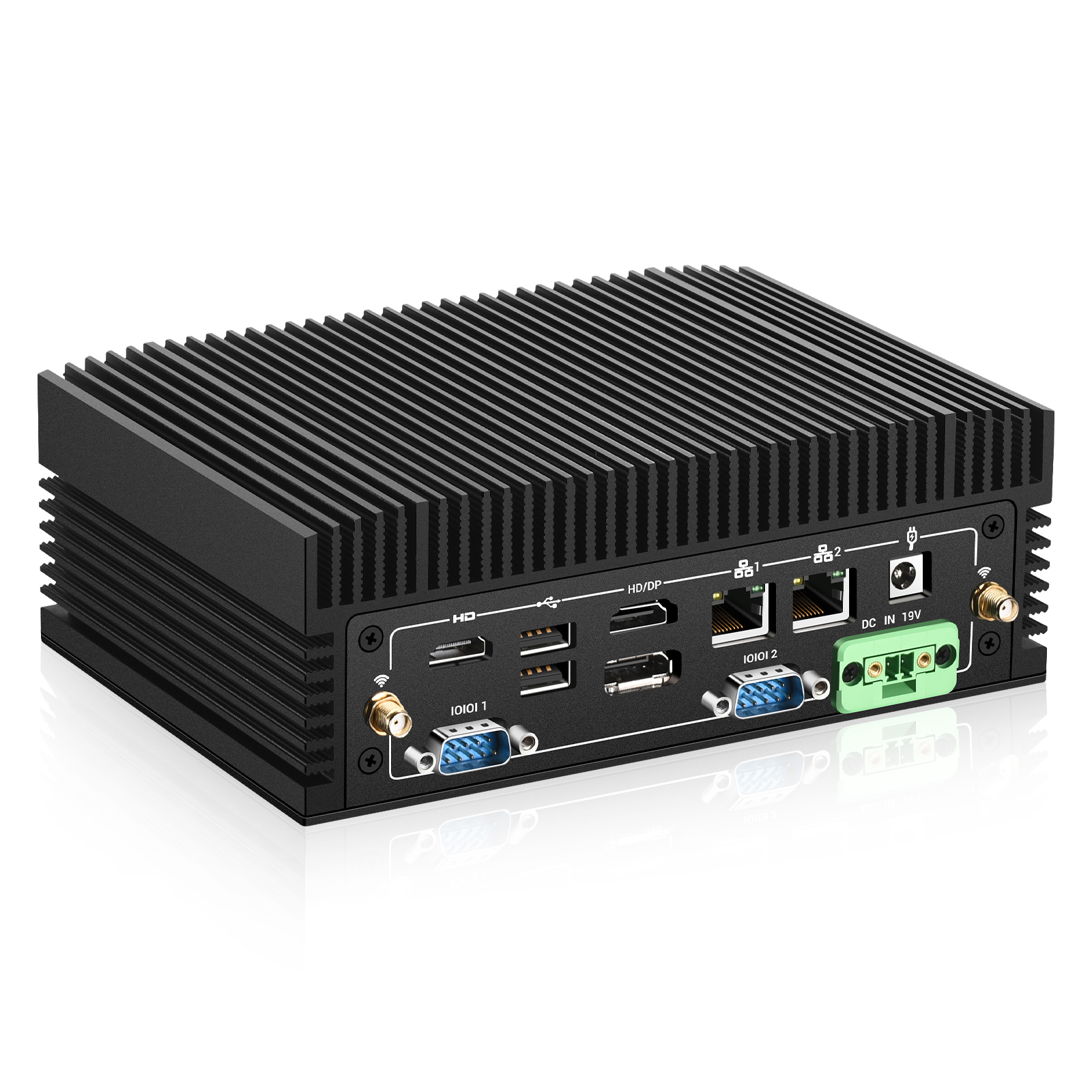

| BACK PANEL |
2.5Gigabit LAN *2(Intel I226-V chip) HDMI 2.0 * 2 DP1.4 * 1 USB2.0 *2 COM 232 * 1, COM485 * 1 Phoenix terminal for DC power |
|||||
| POWER |
Input:100- 240V AC Output: 19V3.42A/4.74A DC |
|||||
| ACCESSORIES |
Quick User Guide,AC Adapter,HDMI cable, VESA mount |
|||||
| VESA mount | Support(70*70/100*100mm) | |||||
| SIZE | Chassis:185*125*60mm | |||||
| CHASSIS MATERIAL | Plastic | |||||
| OS SUPPORT | WIN11/Linux/WIN10 | |||||
