Home > AC8F( 4 xlan mini PC)
| Type | Descriptions | |||
| PROCESSOR | Intel® Jasper lake Processor: TDP 10W | Intel® Alder lake-N Processor： TDP 6W | ||
|
Intel® Celeron: N5105 (Quad core, 2.0GHz~2.9GHz) Intel® Pentium Silver Processor: N6005 (Quad core, 2.0GHz~3.3GHz) |
Alder lake-N N100(Quad Core, Max 3.4GHz) Alder lake-N N200(Quad Core, Max 3.7GHz) |
|||
| GPU | Intel® UHD Graphics | |||
| MEMORY | 2 x SODIMM DDR4 Max 32GB | 1 x SODIMM DDR4, Max 32GB | ||
| Wireless | WiFi: m.2 PCIe port | |||
| LAN | 2 x RJ45: Gigabit LAN | |||
| STORAGE | 1 x M.2 2280 SATA/NVME SSD | |||
| DISPLAY PORT | HDMI 2.0b + DP1.4a+VGA | |||

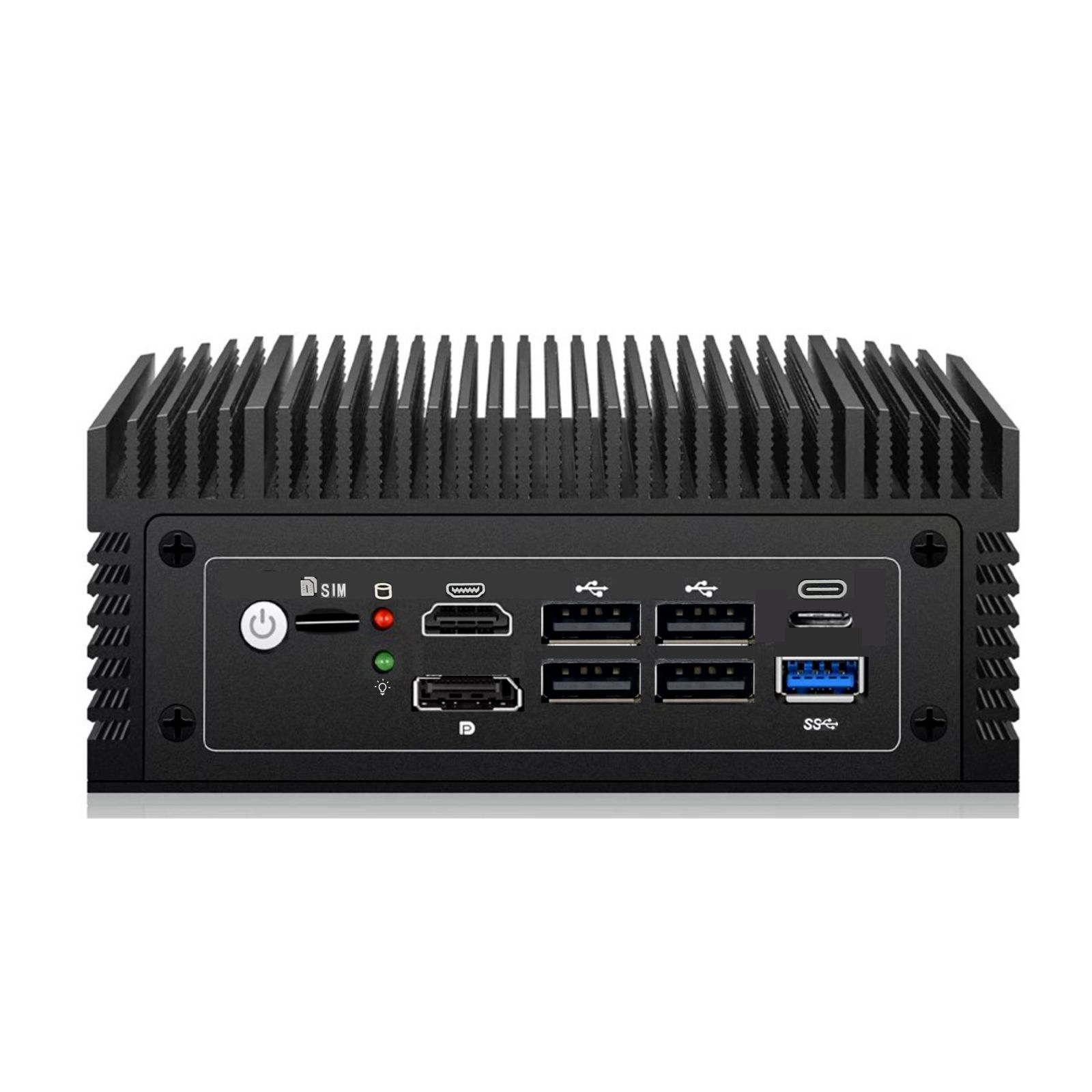

| FRONT PANEL |
1 x Power Button 4 x USB3.0 1 x Micro SD 1 x MIC IN 1 x Line out |
|||

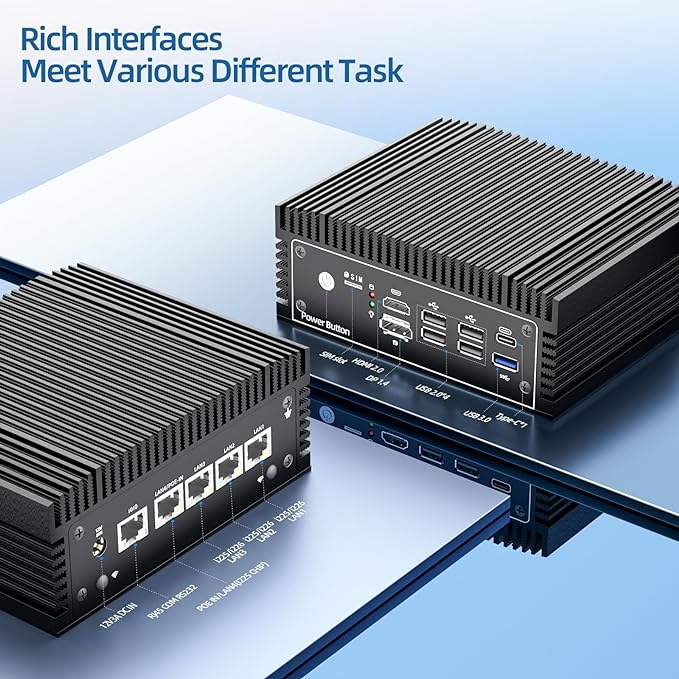

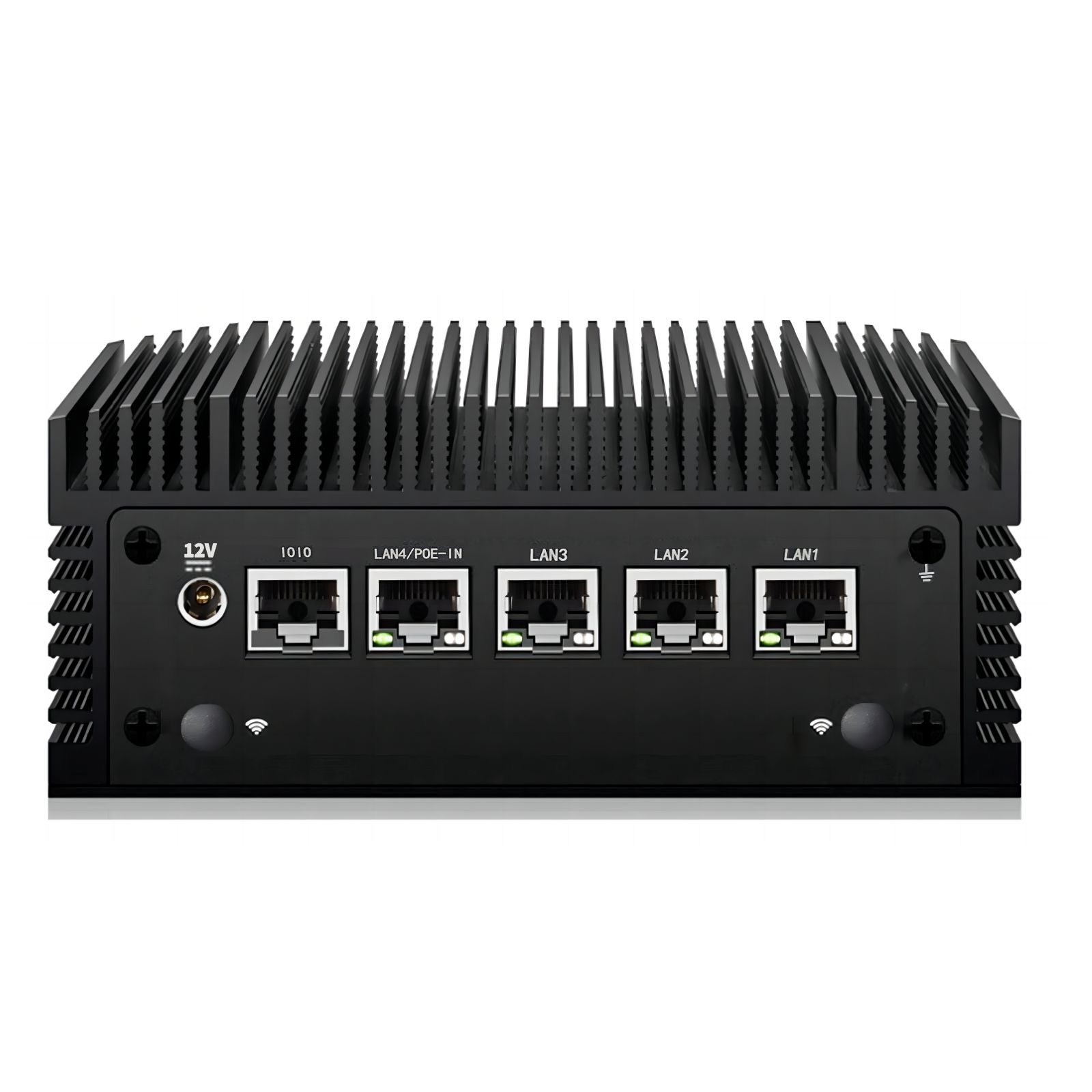

| BACK PANEL |
2 x RJ45 Gigabit LAN port 1 x COM232 or 1 x VGA 1 x HDMI 2.0 1 x DP1.4 1 x DC IN |
|||
| POWER |
Input:100- 240V AC Output: 12V2.5A DC |
|||
| ACCESSORIES |
Adapter HDMI cable VESA mount |
|||
| VESA | Support 70x70/100x100mm | |||
| BIOS | Wake On LAN, UEFI,Auto power on when power failure, PXE | |||
| SIZE | Chassis:123*123*45mm | |||
| CHASSIS | PLASTIC | |||
| OS SUPPORT | WIN11/WIN10/Linux | |||
